Recessed Chamber Filter Plate for Chamber Filter Press

Description

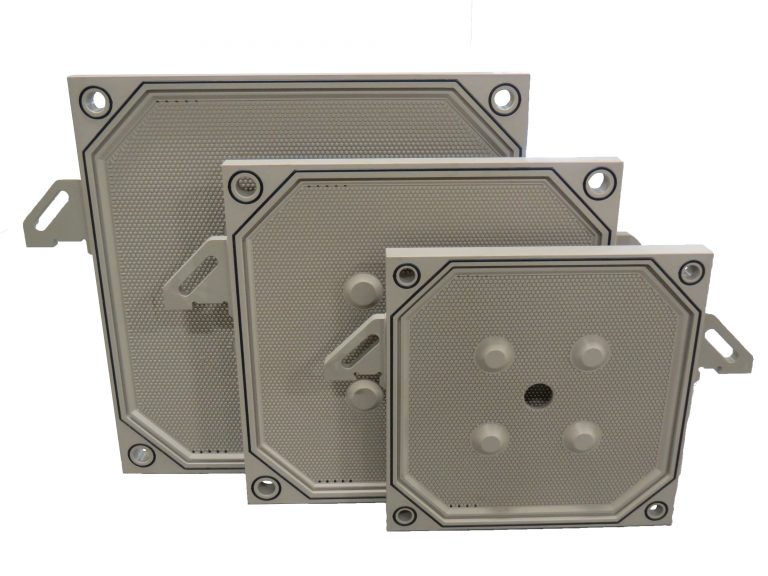

Recessed chamber filter plate is used for the chamber filter press which is most popular filter press type. The filter plate with double side recessed chamber. Each two plates sides formed one filter chamber.

Recessed chamber filter plate is made of reinforced PP material, which can resistant high temperature and high pressure.

On the recessed chamber plate, there is a feeding hole which normally on the central position. On the four corners can open 4 holes according to different demand for the closed filtrate discharge and the cake washing.

For the sizes of the recessed chamber filter plate, now we having 400x400mm, 500x500mm, 630x630mm, 800x800mm, 920x920mm, 1000x1000mm, 1250x1250mm, 1500x1500mm, 2000x2000mm.
